How does yard layout impact terminal capacity and efficiency?

Yard layout forms the operational backbone of terminal capacity and efficiency. It establishes the physical framework within which all containers are stored and all movements occur. The arrangement of storage blocks, handling equipment zones, container interchanges, and traffic lanes directly affects the terminal’s ability to stack and process cargo efficiently.
The impact of yard layout on terminal capacity and efficiency includes:

Space utilization– A well-designed yard maximizes storage capacity while maintaining operational efficiency and sufficient accessibility for equipment. Poorly configured yards create unsustainable stacking flows, unproductive moves, unnecessary travel distances for transport vehicles, leading to increased cycle times and reduced productivity.
Equipment deployment– The yard layout must accommodate the operational patterns of specific equipment types, whether RTGs, ASC, C-RMGs, or straddle carriers. Each system requires different block dimensions, aisle widths, and transfer point configurations to operate at peak efficiency.
Traffic flow management– Well-planned traffic circulations flows, buffer zones, and transfer areas prevent congestion and equipment interference. When these elements are properly integrated, terminals can maintain consistent performance even during peak periods.

What are the key components of an efficient yard layout design?

An efficient yard layout incorporates several interdependent components that work together to create a high-performance terminal environment. The foundation begins with strategically sized and oriented storage blocks that match the chosen handling system, expected dwell times, storage demands balancing with operation efficiency – not only in average conditions but also during peak operations.

Component	Description	Impact on Efficiency
Block Dimensions	Must balance storage density, accessibility, and operation	Too large: creates inefficient travel patterns Too small: wastes valuable space on access lanes
Aisle Configurations & Transfer Zones	Critical connectors within the yard	Poorly designed layouts can significantly increase congestion and queuing time per container movement
Buffer Zones	Essential for absorbing operational surges	Accommodates temporary container influxes without disrupting operations
Equipment Pathways	Must be clearly defined and optimized	Supports unique operational patterns through appropriate turning radiuses, passing areas, and maintenance access points

How does automation influence yard layout requirements?

Automation introduces additional specific design parameters for yard layout considerations. Automated terminals require more structured environments with precise tolerances and clearly defined operational zones to function efficiently.

Automated Stacking Cranes (ASCs) – Typically operate in perpendicular orientation to the quay, necessitating longer,blocks than conventional RTG systems. These blocks require precise dimensional consistency and dedicated interchange zones at their ends for horizontal transport handoffs.
Horizontal transport systems – Whether automated guided vehicles (AGVs), automated straddle carriers or even autonomous vehicles, need predictable pathways with minimal interference. This often means well defined travel lanes, dedicated turning areas, and buffer zones that could be less essential in manual operations.
Integrated management systems – Require physical infrastructure that supports equipment positioning systems, communication networks, and safety measures. The yard layout must incorporate these technical requirements without compromising operational efficiency.

Well-designed automated terminals can demonstrate higher berth occupancy, yard occupancy, equipment deployment and reliable operation efficiency. However, achieving this performance demands careful layout planning. Automation implemented without proper yard design consideration can struggle to reach targeted performance levels and lacks the flexibility to adapt to changing industry challenges.

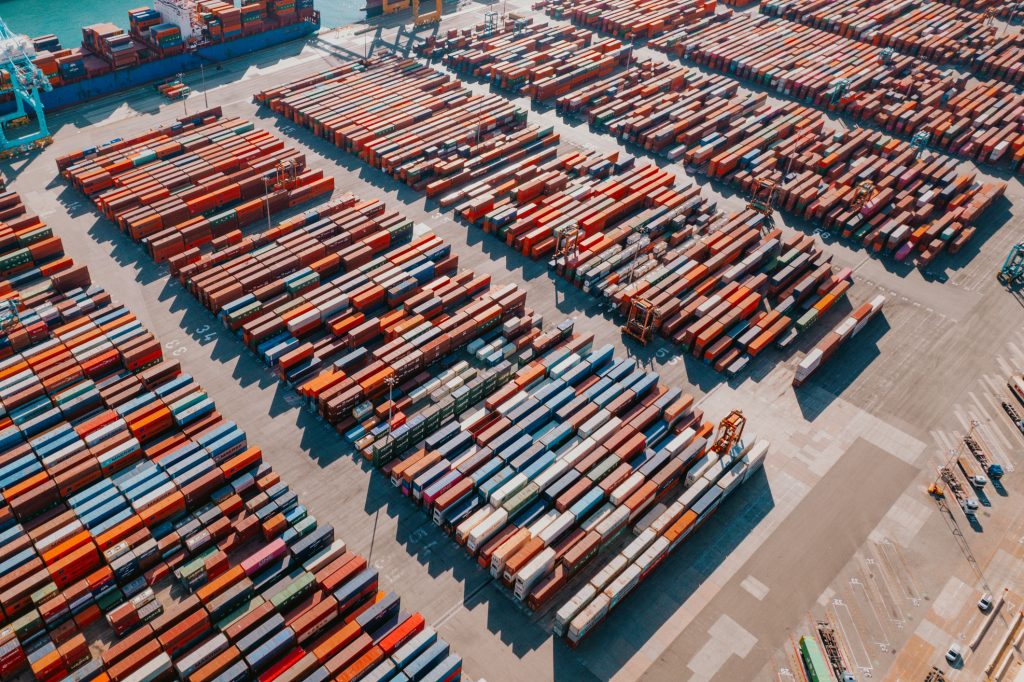

Yard layout forms the operational backbone of terminal capacity

What are common yard layout mistakes that reduce terminal productivity?

Several layout flaws regularly undermine terminal productivity despite being preventable through proper planning:

Improper block orientation– Particularly when blocks are aligned in ways that misalign with terminal cargo characteristics and increase travel distances for horizontal transport vehicles or create awkward traffic patterns.
Insufficient transfer points– Between yard blocks and transport lanes create bottlenecks that ripple throughout operations, particularly problematic during peak periods.
Poor traffic management design– Leads to congestion, equipment interference, and safety hazards. Efficient lane configurations for traffic circulation, clear crossing points, and adequate passing zones are essential but often compromised.
Failure to account for equipment breakdown and yard maintenance– Creates insufficient handling capacity in real operation environment and inflexibility that reduces resilience. Terminals need strategically positioned maintenance areas for yard equipment, as well as the buffer capacity for crane breakdowns.
Lack of robustness – terminal cargo modality shifts, dwell time changes, peak varies in operations. Robustness in yard layout design is essential to allow buffers in capacities and ensure reliable container storage and handling.

How can simulation help optimize yard layout before implementation?

Advanced simulation modeling provides an invaluable tool for validating yard designs before committing to construction. Through detailed digital representation of terminal operations, unknowns can be disclosed, potential inefficiencies identified, throughput capacity tested, and various operational scenarios examined without real-world implementation risks.
Key benefits of simulation in yard layout optimization:

Comprehensive testing of different yard layouts under various conditions, including peak vessel calls, shift in patterns, adverse weather, equipment breakdowns, etc.
Performance assessment of design decisions on key metrics like quay crane productivity, horizontal transport efficiency, yard utilization, alternative stacking strategies, yard handling capability.
Financial validation by quantifying the operational impact of different design choices, allowing for informed investment decisions.
Phased implementation planning, enabling understanding of how a layout will perform through various stages of development and throughput growth.
Risk reduction by revealing potential bottlenecks that might otherwise remain hidden until actual operation.

A change in yard layout can in turn impact transport vehicle traffic patterns, circulations, and travel times per container movement, which ultimately impacts overall terminal productivity.

Key takeaways: Maximizing terminal efficiency through strategic yard design

Strategic yard design serves as the foundation for operational excellence in modern terminals. By approaching layout planning from a holistic perspective that considers equipment requirements, traffic flows, and operational patterns, terminals can achieve sustainable performance improvements.

Data-driven design approaches using simulation and analytical tools provide the most reliable path to optimal yard configurations, allowing thorough testing before implementation.
Future-proofing considerations should be integral to yard layout planning, accommodating anticipated changes in vessel sizes, cargo patterns, and automation technologies.
Comprehensive approach to efficiency improvement yields multiplied benefits when yard layout optimization is integrated with equipment selection, process design, and control system implementation.
Expert consultation provides valuable perspective from successful implementation projects in the design of terminal yards.

If you’re interested in learning more, reach out to learn about terminal yard optimization.
